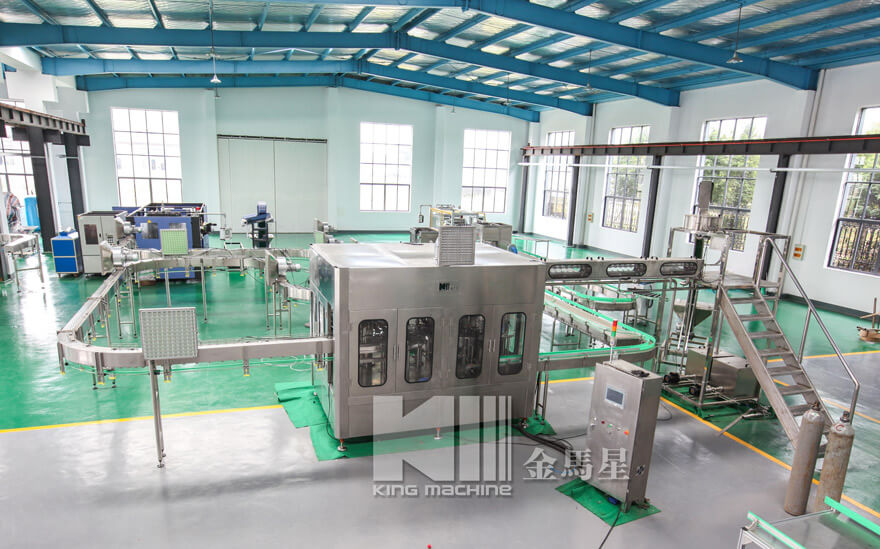

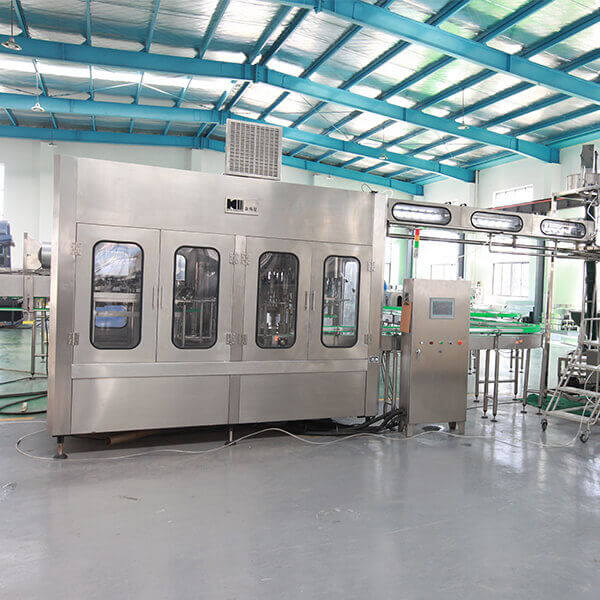

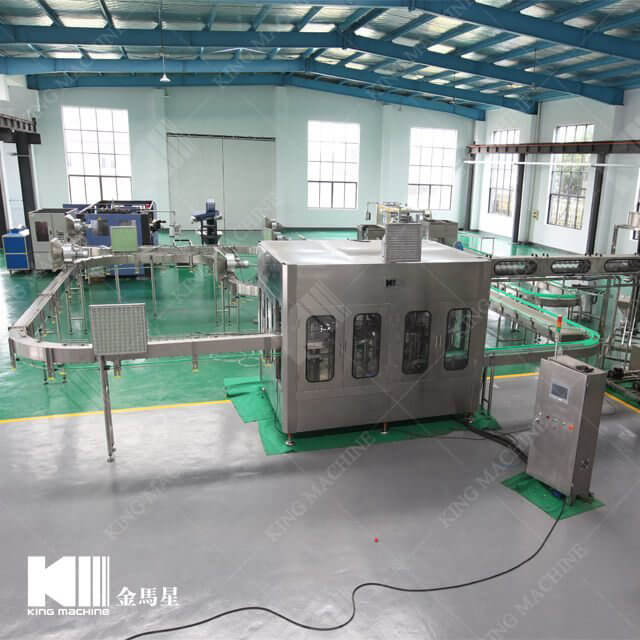

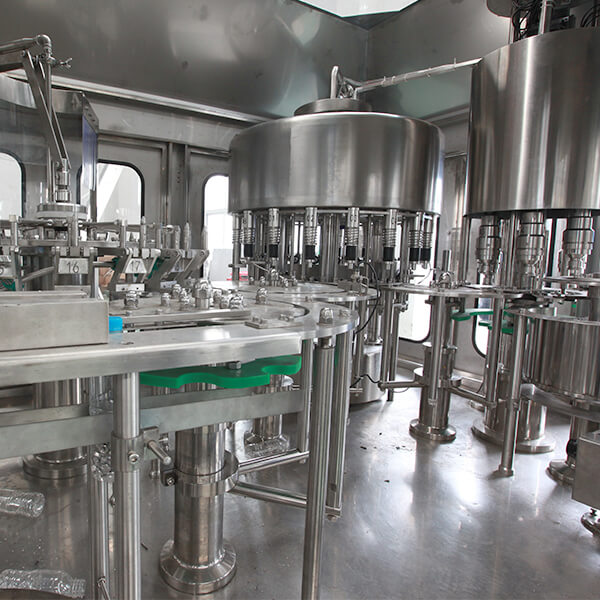

3-in-1 Mineral Water Filling Capping Machine 12000BPH

3-in-1 Mineral Water Filling Capping Machine 12000BPH

1. CGF24-24-8 Water bottling machine is 12,000BPH

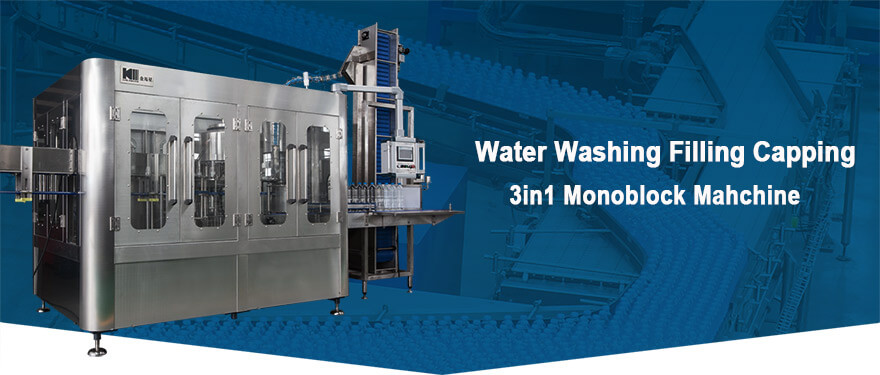

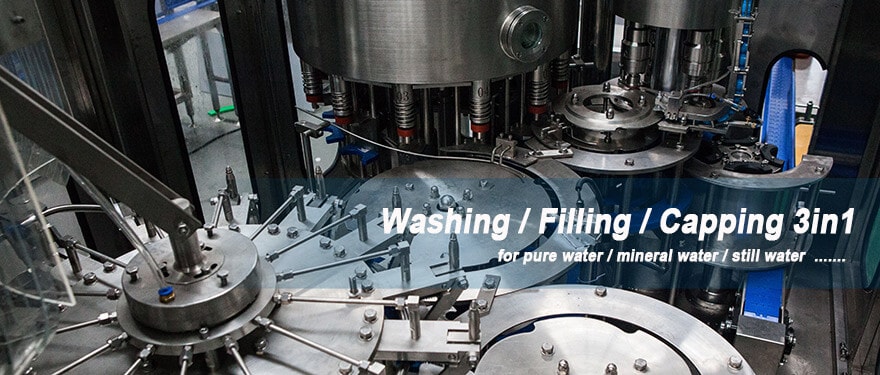

2. Automatic Washing Filling Capping Machine (3-in-1)
3. SS304 stainless steel
4. SIEMENS programmed controller (PLC)
5. ISO9001, CE, SGS, BV, SONCAP

Quantity:

Share this:

Model: CGF24-24-8 12000B/H
Brand: KING MACHINE

Product Description
Bottling Plant Video

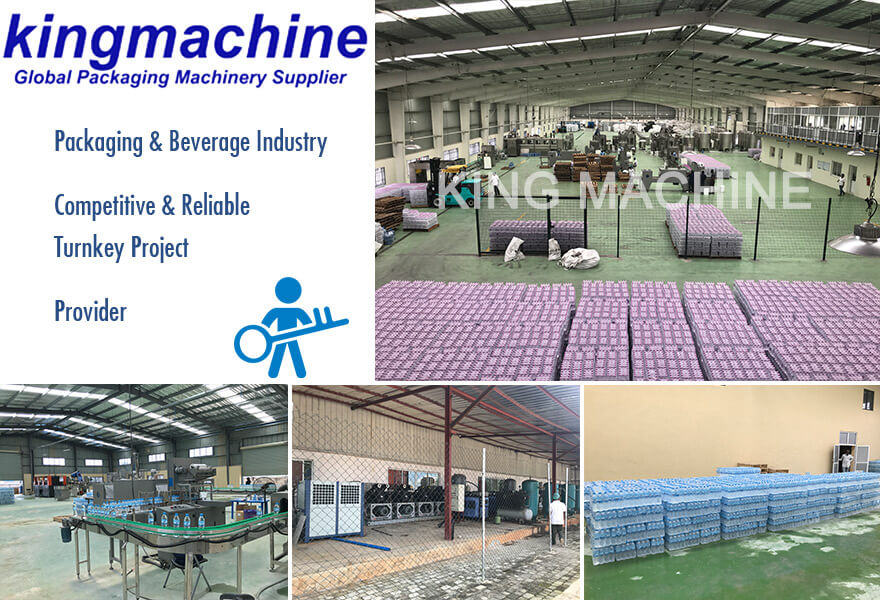

Turnkey Project
Company Information
Our Customer

Automatic Bottled Water Filling Machine Price

Used to produce mineral water, purified water, alcoholic beverage machinery and other non-gas beverage in PET bottle . It can finish all the process such as washing bottle, filling and capping , it can reduce the water liquid outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
With years of experience in water filling, King Machine not only mastered the key technology, but also improved machine designs to address specific product features.
King Machine offers water filling solutions that are accurate, hygiene and no residual.

Project name :Automatic Bottled water filling machine price
Model	CG8-8-3	CGF14-12-4	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12
Capacity(500ml bottles)	2000	3000-4000	6000-8000	8000-12000	13000-15000	16000-18000
Suitable bottle shapes	PET circular or square
Bottle diameter(mm)	Dia50-Dia115mm
Bottle height (mm)	160-320mm
Compressor air pressure(Mpa)	0.3-0.7Mpa
Washing meidum	Aseptic water
Rinsing pressure(Mpa)	>0.06Mpa<0.2Mpa
Application	Bottle water filling machine
Total power (KW)	4.4	4.4	4.4	5.2	6.2	7.8
Overall dimensions(L*W)	2.3*1.9	2.5*1.9	2.8*2.15	3.1*2.5	3.8*2.8	4.5*3.3
Height	2.3m	2.5m	2.5m	2.5m	2.5m	2.6m
Weight(kg)	2500kg	3200kg	4000kg	4500kg	6500kg	8000kg

Automatic Bottled Water Filling Machine Price

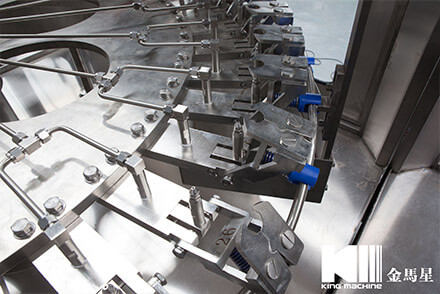

Washing heads.

*All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
*304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
*304/316 stainless steel washing pump

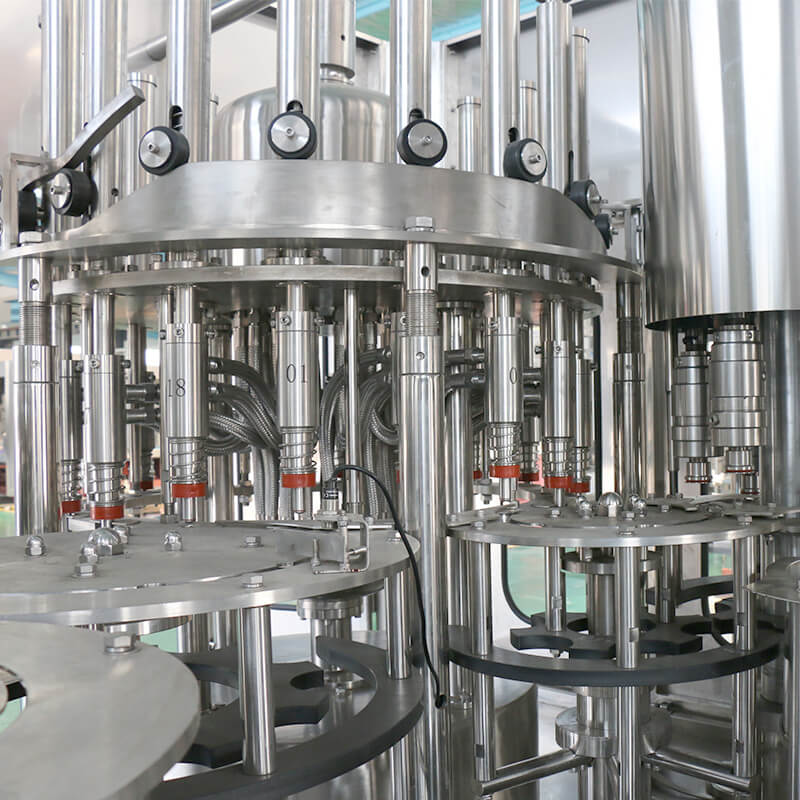

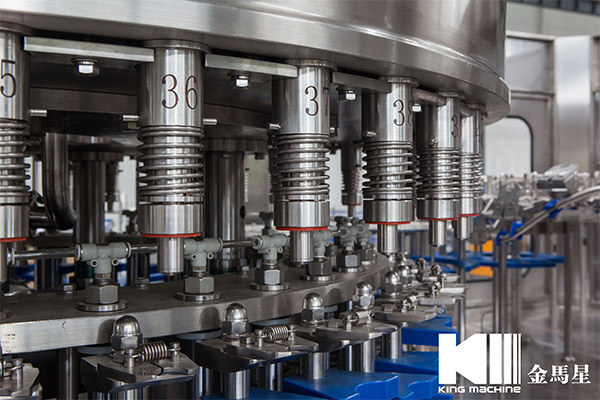

Filling heads

*304/316 Stainless steel high precision filling nozzle
*Filling volume adjustable in fine rank, same liquid level after filling
*All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
*304/316 stainless steel filling pump

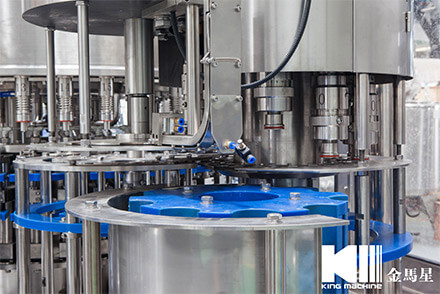

Capping heads

*Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
*All 304/316 stainless steel construction
*No bottle no capping
* Automatic stop when lack of bottle.

Main Features

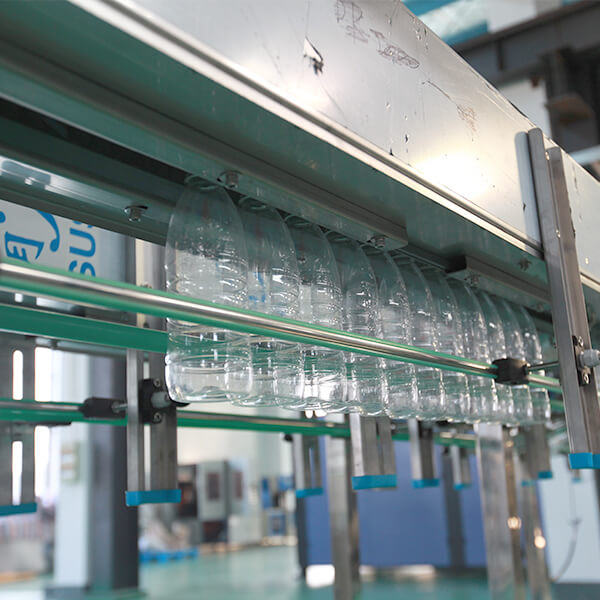

*Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
* Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
* The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
*High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
*Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

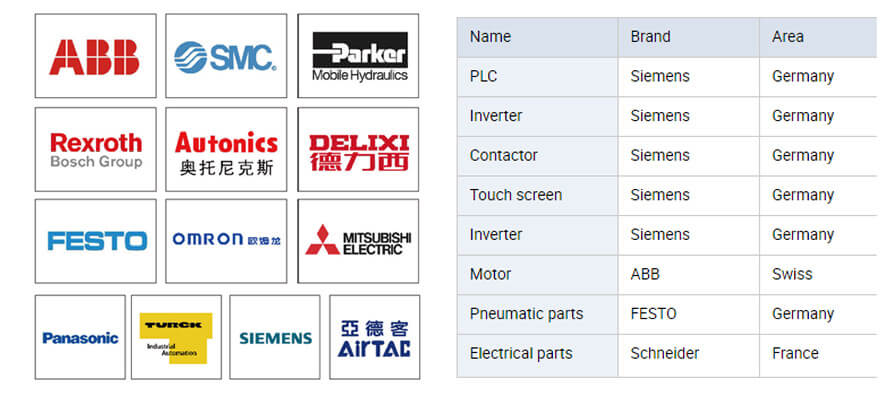

*Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

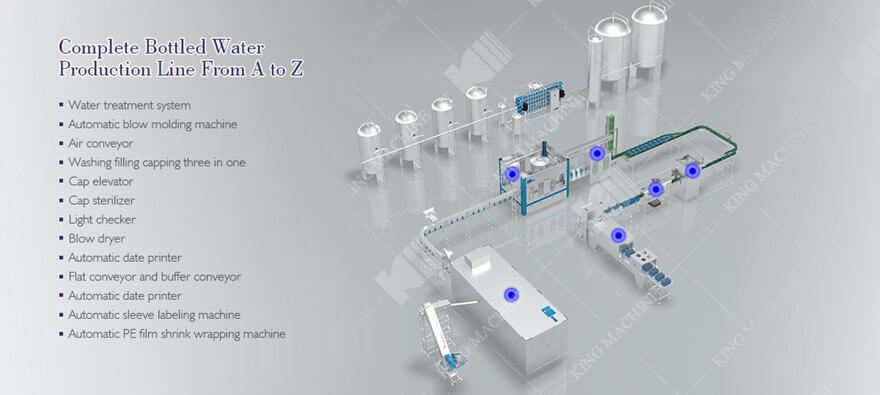

Whole Project Design

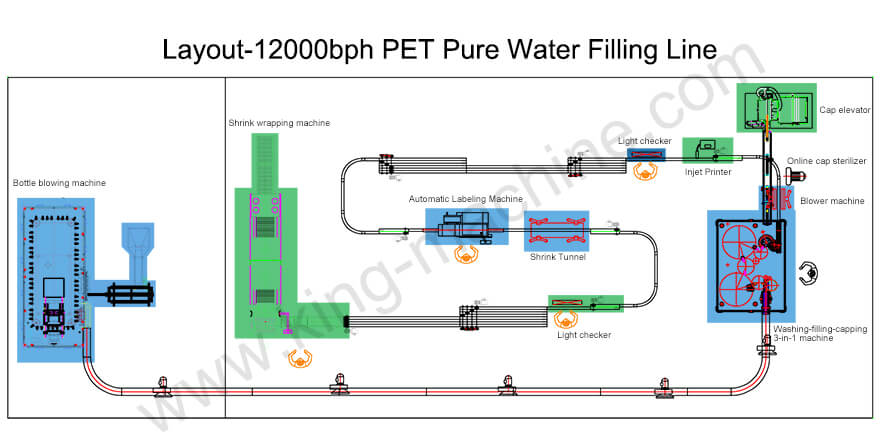

Flow chart: (Pure water filling machine):

A)Bottle production line PET Resin --Injection moulding machine -Botlte blowing machine --PET bottle

B)Water treatment system Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis -UV sterilizer-Ozone generator--Finished water tank

C)Filling&Packing part Bottle unscrambler--Air conveyor--Washing,filling,capping 3in1 machine--Light checker--Blow dryer--Dater printer--Lableing machine --Packing machine -Stock

Nearly 15 years, King Machine has provided bottling & packing equipments of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.

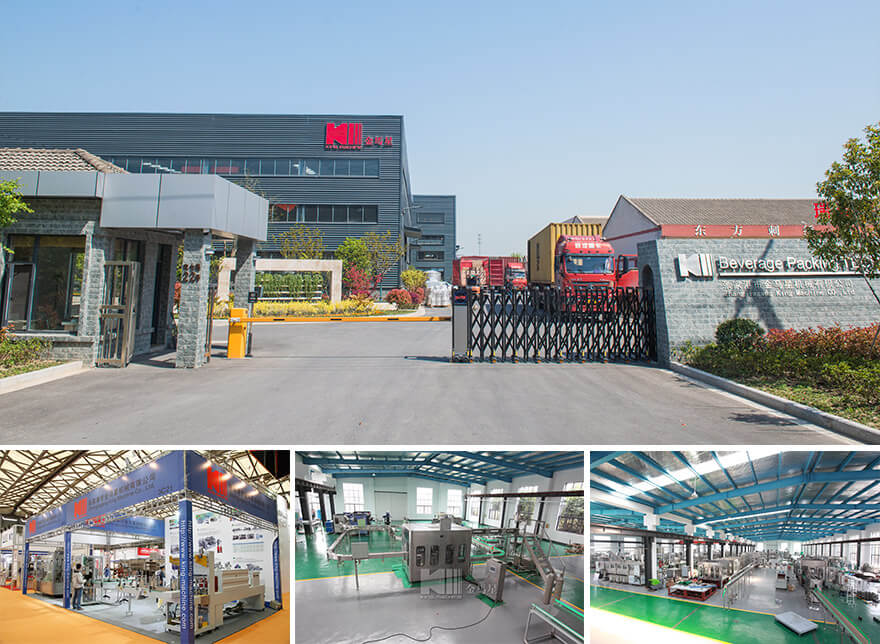

1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.

Automatic Bottled Water Filling Machine Price

Project name :Automatic Bottled water filling machine price
Model	CG8-8-3	CGF14-12-4	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12
Capacity(500ml bottles)	2000	3000-4000	6000-8000	8000-12000	13000-15000	16000-18000
Suitable bottle shapes	PET circular or square
Bottle diameter(mm)	Dia50-Dia115mm
Bottle height (mm)	160-320mm
Compressor air pressure(Mpa)	0.3-0.7Mpa
Washing meidum	Aseptic water
Rinsing pressure(Mpa)	>0.06Mpa<0.2Mpa
Application	Bottle water filling machine
Total power (KW)	4.4	4.4	4.4	5.2	6.2	7.8
Overall dimensions(L*W)	2.3*1.9	2.5*1.9	2.8*2.15	3.1*2.5	3.8*2.8	4.5*3.3
Height	2.3m	2.5m	2.5m	2.5m	2.5m	2.6m
Weight(kg)	2500kg	3200kg	4000kg	4500kg	6500kg	8000kg

Automatic Bottled Water Filling Machine Price

Filling heads

Whole Project Design

Flow chart: (Pure water filling machine):

A)Bottle production line PET Resin --Injection moulding machine -Botlte blowing machine --PET bottle

B)Water treatment system Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis -UV sterilizer-Ozone generator--Finished water tank

C)Filling&Packing part Bottle unscrambler--Air conveyor--Washing,filling,capping 3in1 machine--Light checker--Blow dryer--Dater printer--Lableing machine --Packing machine -Stock

Auxiliary machines

RO water treatment system

We adopt different equipment to produce pure water, mineral water etc. The main equipment of RO Water Treatment Plant are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank etc. It can effectively get rid of muddy organic matter, iron, manganese etc, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water.

Flat conveyor

·The bottle belt is synchronously tracked with the host or the upstream and downstream equipment, which are connected to control system.
·The bottle does not fall, does not jam, and does not block during the conveying process.
·According to the user's needs, the buffer platform can be set in front of the labeling machine (the buffering time is usually about 1-2 minutes).

Automatic labeling machine

1.Hot melt glue labeling machine is widely used for different material of container .
2.The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers.
3.It is the most economical models in cost to make mass production and intergrated operating.
4.The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles.

PE film packaging machine

Automatic PE film heat shrink wrapping machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.
