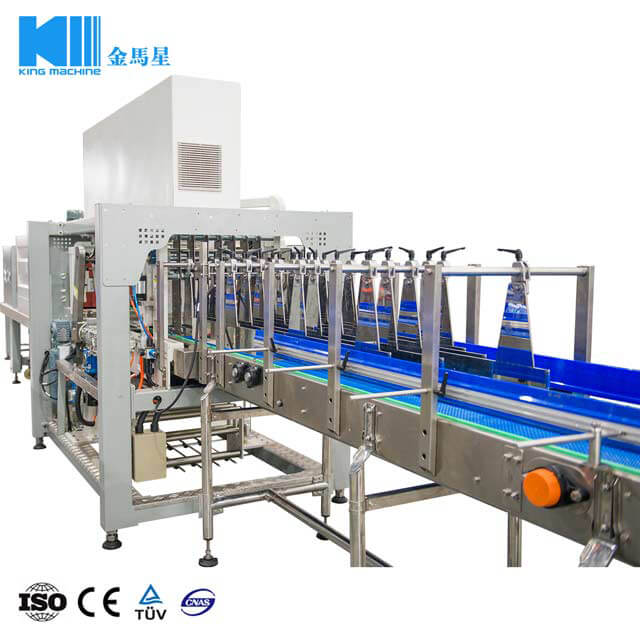

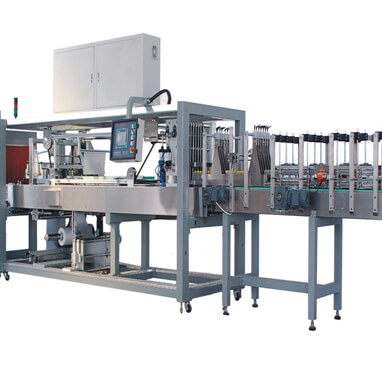

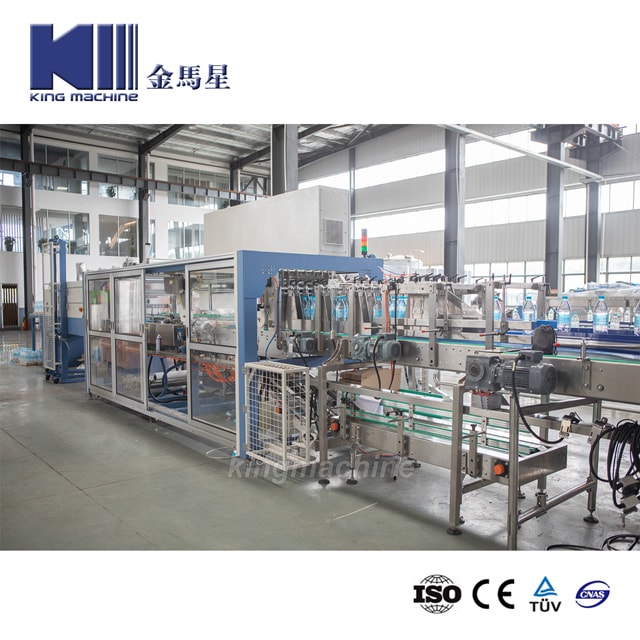

Automatic Linear Type Shrink Wrapping Packing Machine (Color Film) Automatic Linear Type Shrink Wrapping Packing Machine (Color Film)

1.Automatic Shrink Packaging Machinery
2.Single Roller Film Wrapping Machine
3.Rated capacity:12,000 bph based on 500mL

Quantity:
Share this:
  • Model: KM
  • Brand: KM
  • Code: 8422
  • Product Description
  • Turnkey Project
  • Company Information
  • Our Customer
  • FAQ

 Specification:
   Voltage:220V  50HZ
   Power:2KW
   Max.packing size:420 280  350mm  L W H
   Package speed:17-25bags/min
   Air source pressure:0.5-0.7Mpa
   Equipped with infrared ray hot air circle shrink tunnel
   Power:22KW
   Conveyor speed:0-15m/min
   Shrink tunnel size:2465  840 1700mm L W H
   Note:the machines packing size and shrink tunnel is designed according customer requested speed and bottle size.

No

Model

BS-20

BS-26

1

Capacity

12000bph   500ml

15000bph   500ml

2

Gas requirement

0.4 ~ 0.6Mpa

3

Working pressure

3PH 380V/50Hz, 42KW

4

Air   Pressure

0.60.8Mpa (without oil without water)

5

Air consumption

80-100NL/min

Pipe Joint Size: Φ10

6

Shrink chamber L×W×H

1800×650×450(mm)

7

Shrink temperature

200280

8

Packing Material

LDPE dust & static electricity removed Width   of film roll≤600mm

Thickness of film0.060.10mm

Diameter of film roll≤350mm

Film reel diameter: 76mm

9

Working noise

≤65dB

10

Total weight

4000kg

11

Environment condition

3-100 meters above sea level

12

Environment temperature

5-40

13

Environment Humidity

30-80 % without condensation

YCBS26C

TECHNIC

BRAND

Servo MotorControl System

AUSTRIA

B & R

PLC

AUSTRIA

B & R

Touch-screen

AUSTRIA

B & R

Transducer

FRANCE

SCHNEIDER

Approach Switch

KOREA

AUTONICS

Pneumatic Organ

GERMANY

FESTO

Contactor

GERMANY

SIEMENS

Button

SHANGHAI

TAYEE

Press Adjust Device

TAIWAN

MINDMAN

Air switch

CHINA

DELIXI

Terminal

CHINA

TAYEE

Intermediate Relay

FRANCE

SCHNEIDER

Conveyor motor

GERMANY

SEW


Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.

1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.

To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.

Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.

×
