3000BPH Carbonated Drink 3-in-1 Filling Machine 3000BPH Carbonated Drink 3-in-1 Filling Machine

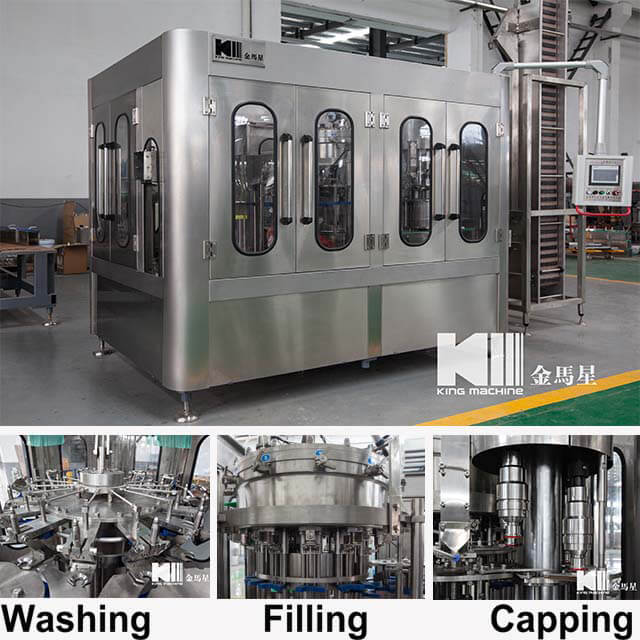

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.

Quantity:
Share this:
  • Model: DCGF 14-12-4
  • Brand: KM
  • Code: 8422301090
  • Product Description

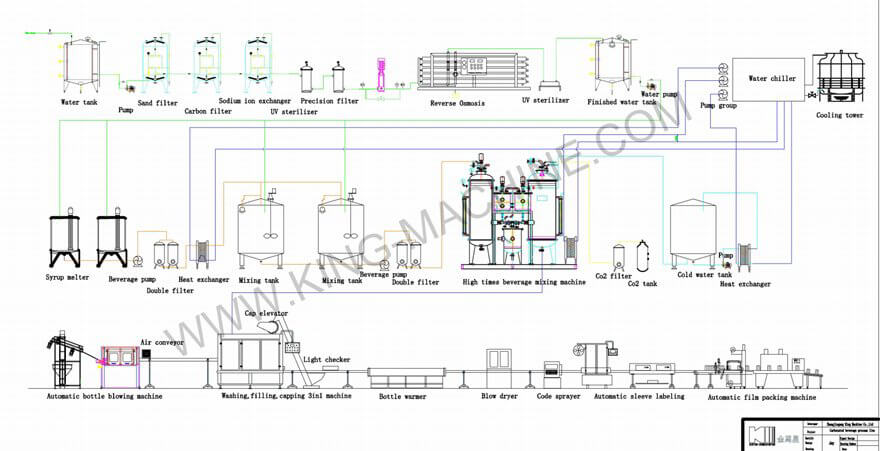

  • Turnkey Project
  • Company Information
  • Our Customer
  • FAQ

Products Introduction:

1.Carbonated drink 3-in-1 filling machine 3000bph uses the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

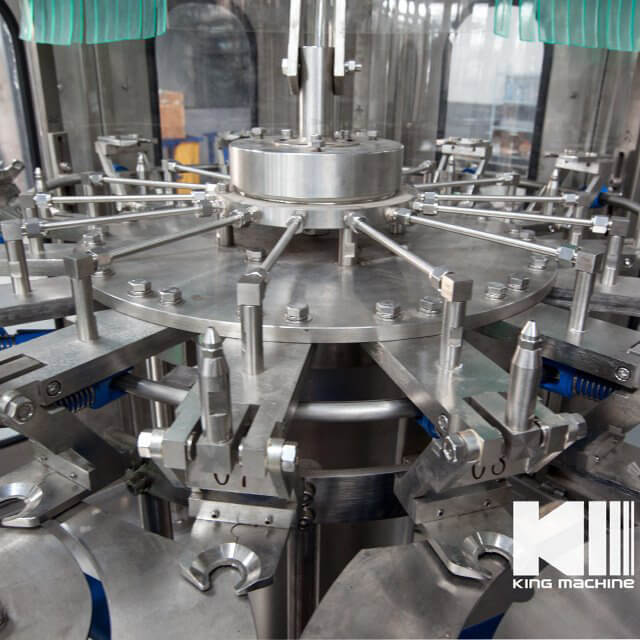

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, Siemens.


Technical parameter:

Model

DCGF14-12-4

DCGF16-16-5

DCGF18-18-6

DCGF24-24-8

DCGF32-32-10

Rinsing head

14

16

18

24

32

Filling head

12

16

18

24

32

Capping head

4

5

6

8

10

Power of main motor

3 kw

3 kw

3 kw

4 kw

 4.8 kw

Total weight

2.8 T

3.2 T

3.6 T

4.5 T

4.8 T

Capacity

2000-3000

3000-5000

6000-8000

8000-12000

12000-15000

Bottle diameter

50-80mm

50-80mm

50-80mm

50-80mm

50-80mm

Bottle height

160-320mm

160-320mm

160-320mm

160-320mm

160-320mm

Method of changing speed

Frequency conversion

Frequency conversion

Frequency conversion

Frequency conversion

Frequency conversion

Power of unscramble motor

0.37 kw

0.37 kw

0.37 kw

0.37 kw

0.37 kw

Supply presure of rinsing water

=0.06Mpa=0.2Mpa

=0.06Mpa=0.2Mpa

=0.06Mpa=0.2Mpa

=0.06Mpa=0.2Mpa

=0.06Mpa=0.2Mpa

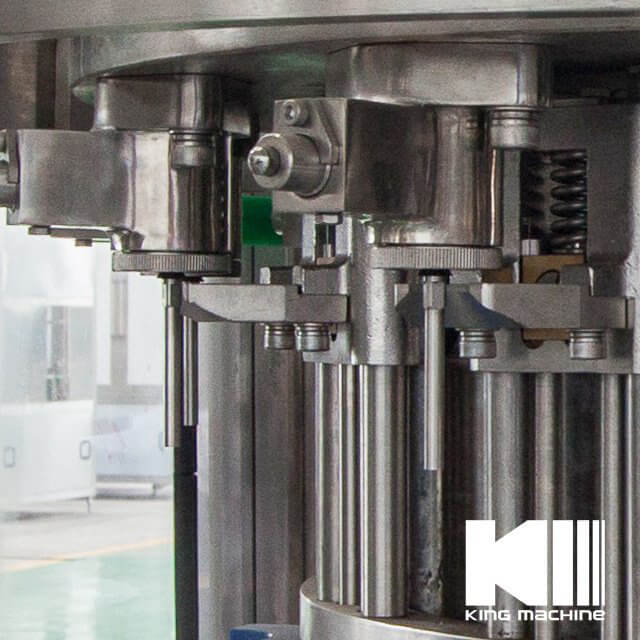

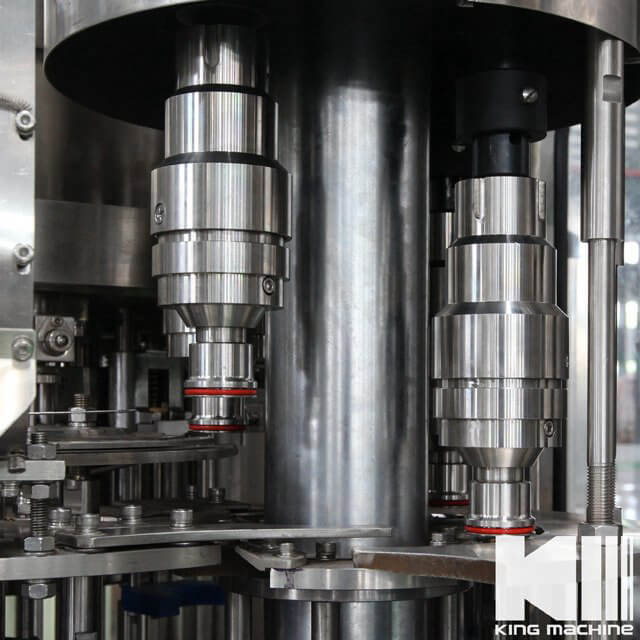

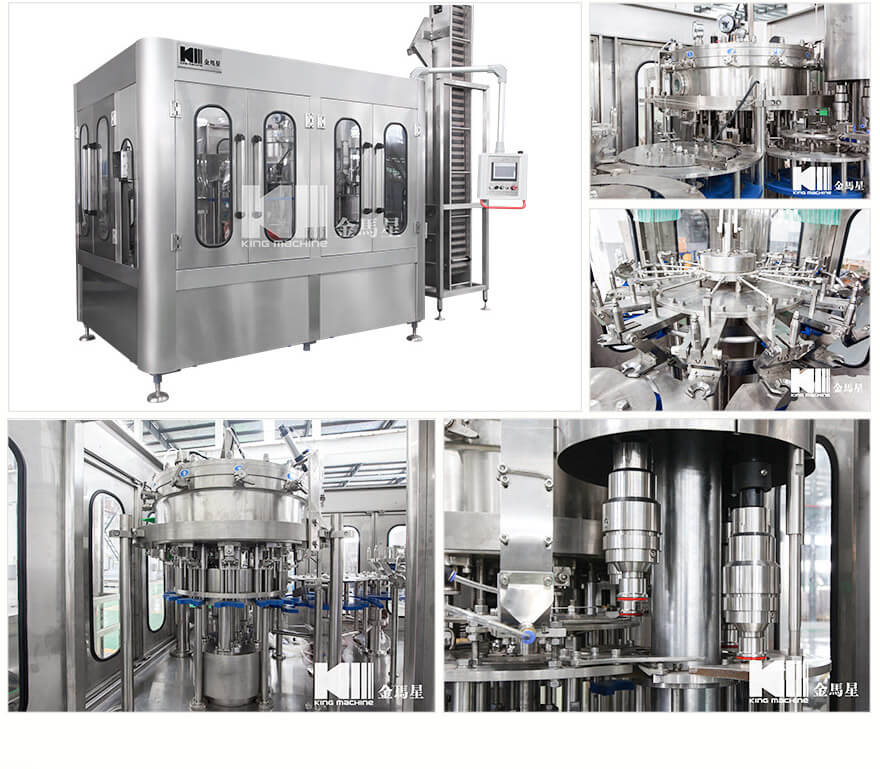

Photos for Machine:

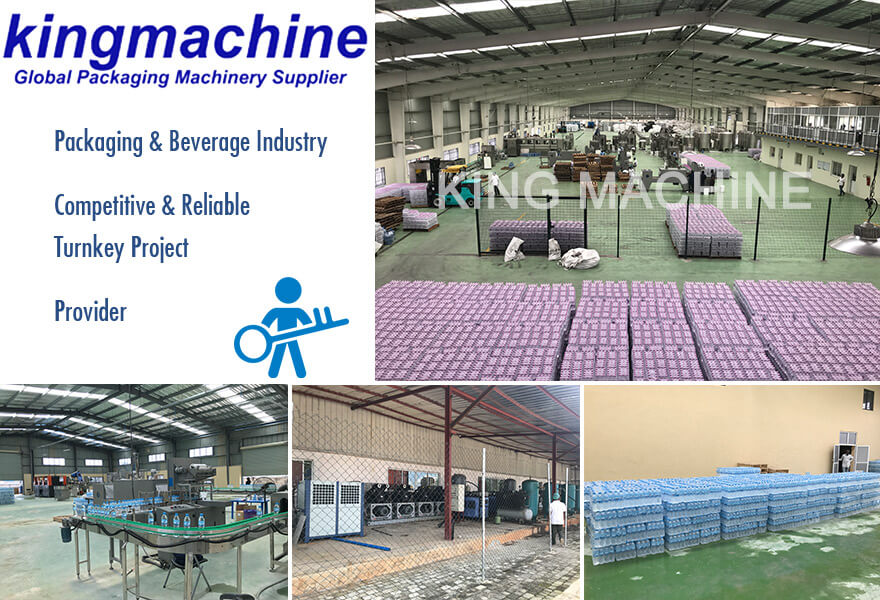

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.

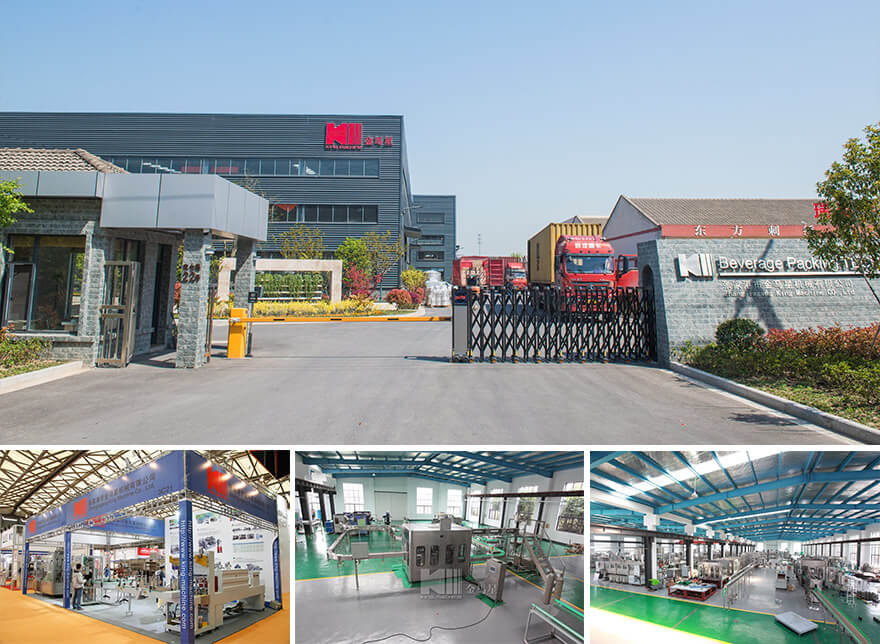

1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.

To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?

A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
×
